Refurbished Edwards RV12 model vacuum pump A65501906 RV12REF
Refurbished Edwards RV12 model vacuum pump A65501906 RV12REF
Regular price
$1,782.50 USD
Regular price
$2,495.00 USD
Sale price
$1,782.50 USD
Unit price
/
per
Couldn't load pickup availability
Edwards model RV12 vacuum pump refurbished and certified by rebuiltvacuumpumps.com with a full one-year warranty.
This vacuum pump has been decontaminated prior to being professionally rebuilt. All internal parts have been reworked or replaced to original specifications using the genuine OEM parts to ensure years of trouble-free service.
This vacuum pump is currently in stock and ready to ship.

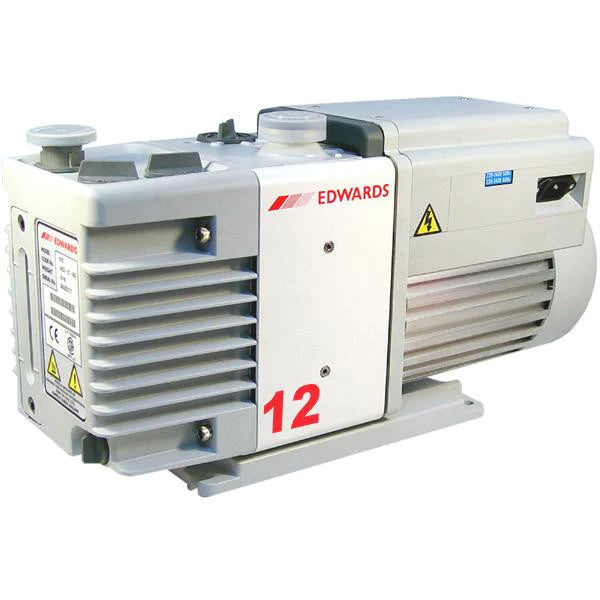

The product photo is of a new vacuum pump of the model for sale and not the actual product. Contact us for a photo of this vacuum and any questions you may have.
Technical Data
| Displacement | |
| 50Hz | 14.2 m3h-1 / 8.4 ft3min-1 |
| 60Hz | 17 m3h-1 / 10 ft3min-1 |
| Speed (Pneurop 6602) | |
| 50Hz | 12 m3h-1 / 7.1 ft3min-1 |
| 60Hz | 14.2 m3h-1 / 8.4 ft3min-1 |
| Ultimate pressure | 2 x 10-3 mbar / 1.5 x 10-3 Torr |
| Ultimate pressure GB I | 3 x 10-2 mbar / 2.3 x 10-2 Torr |
| Ultimate pressure GB II | 6 x 10-2 mbar / 4.6 x 10-2 Torr |
| Ultimate pressure with Fomblin® | 2 x 10-2 mbar / 1.5 x 10-2 Torr |
| Max inlet pressure for water vapour | 32 mbar / 24 Torr |
| Max water vapour pumping rate – GB I | 60 gh-1 |
| Max water vapour pumping rate – GB II | 220 gh-1 |
| Max allowed outlet pressure | 0.2 bar gauge / 2.8 psig |
| Max allowed inlet and gas ballast pressure | 0.5 bar gauge / 7 psig |
| Motor power 50/60Hz | 450 / 550W |
| Power connector 1-ph | IEC EN60320 C13 |
| Nominal rotation speed 50/60Hz | 1500 / 1800rpm |
| Weight (without oil) | 29 kg / 63.8 lb |
| Oil capacity min/max | 0.65 / 1 litres |
| Recommended oil | Ultragrade 19 |
| Inlet flange | NW25 |
| Exhaust flange | NW25 |
| Noise level | 48 dB(A) @ 50 Hz |
| Operating temperature range | 12 – 40 °C |
